Victron SmartSolar 100/50 Review: 50A Is Powerful, 100V Is the Catch

The Victron SmartSolar 100/50 delivers 50A of passively cooled MPPT charging, built-in Bluetooth, a published 60A array Isc limit, user-defined battery control, and a five-year warranty. For a 12V or 24V cabin, RV, or boat system, it is one of the better-documented controllers in this current class.

Its name also exposes the main tradeoff. The controller accepts no more than 100V PV open circuit and does not support a 48V battery. Buyers attracted to 50A output can discover that series-string voltage—not current—is the first limit they hit, especially with modern high-Voc panels or cold climates.

The 100/50 Rewards a 24V Design but Punishes Casual String Sizing

The expanded owner record supports the SmartSolar 100/50 as a mature mid-size controller with strong app visibility and useful real-world output. It also shows why many successful installations are built around 24V rather than treating 50A as a reason to stay at 12V. Raising battery voltage can reduce current for the same system power, but it changes battery configuration, inverter choice, DC loads, and protection. It is a system decision, not a controller setting.

Several detailed accounts discuss substantial arrays, near-full output, quiet operation, and VictronConnect history. Others mention terminal fit, heat at sustained current, isolated failures, or support that depends on the seller. Those reports identify acceptance tests: confirm the authorized sales path, preserve the serial and order record, torque conductors correctly, and log temperature and output during a long high-sun charge.

Bluetooth history is valuable for comparing harvest across days, yet it is not revenue-grade metering or a substitute for a shunt when battery accounting matters. External battery temperature and voltage sensing also require compatible additional hardware and configuration. Plan those ecosystem pieces before judging the controller’s total price.

The 100/50 is strongest for a carefully calculated 12V or 24V array whose string voltage has comfortable margin below 100V. Buyers who need longer series strings should not “test” the voltage ceiling; the 150V family is the proper design route.

The Best Electrical Fit Is Often 24V

Victron publishes 700W nominal PV power at 12V and 1,400W at 24V. Both rows share the same 50A output, 100V Voc ceiling, and 60A PV short-circuit-current limit. Moving from 12V to 24V allows twice the panel power at the same battery-side current class and can reduce current elsewhere in the system.

One owner reconfigured four batteries from 12V parallel to a 24V 2S2P bank, citing lower current and better conductor fit. The same owner used six 200W panels in 3S2P and described the controller reaching full output. That is a useful real-system example, not a universal endorsement of the string: every module and climate produces a different cold Voc.

The controller starts only when PV voltage is sufficiently above battery voltage, and operating headroom must remain under changing conditions. Use the current manual’s startup and continuation requirements as well as the absolute ceiling. A string that is safe at noon in summer can exceed 100V on a clear freezing morning.

Sizing priority — Check cold Voc before celebrating the 60A Isc allowance. A generous current ceiling cannot rescue a series string that exceeds 100V.

A Detailed Owner Comparison Adds Useful—but Limited—Context

One owner compared the Victron 100/50 with 40A AMPINVT and EPEVER controllers using four 300W panels, a 12V 280Ah LiFePO4 battery, and BMS current as a common external reading. The tests covered series/parallel arrangements, cloud, shade, and full sun and were repeated several times.

The reviewer observed faster initial tracking from AMPINVT but oscillating current, slightly stronger Victron results in some cloudy or shaded configurations, and higher full-sun output from Victron because it alone was rated 50A. The owner explicitly warned that different current ratings, batches, setups, and conditions prevented an absolute ranking and that the experiment said nothing about longevity.

That caution is correct. The comparison is valuable because it documents equipment and method, but it is not a controlled irradiance laboratory. The fair takeaway is that the Victron behaved competitively and used its higher current headroom—not that one small test proves a universal efficiency percentage.

Why the 100V Ceiling Can Force a Different Model

At 50A, buyers often pair the controller with several large panels. Many modern modules have Voc around the 40V–50V range before cold correction. Two in series may fit while three do not; the exact result depends on the datasheet and design temperature.

Parallel wiring can keep voltage lower, but it increases PV current and may require string fusing, larger conductors, and more connectors. The 60A Isc publication makes that design possible to evaluate; it does not make unlimited parallel input acceptable.

One owner concluded that a 150/60 would have provided better future flexibility after building a 24V, 1,200W system. Another returned a 100/50 because an existing 100/30 still met the actual need. Both illustrate good selection discipline: more current is valuable only when the array and bank can use it.

VictronConnect Becomes the 100/50 Control Panel

There is no numeric front display. Status LEDs provide basic state information; detailed readings and settings live in VictronConnect or compatible external hardware. Bluetooth is built in, and owners repeatedly praised pairing, real-time data, custom profiles, and 30-day history.

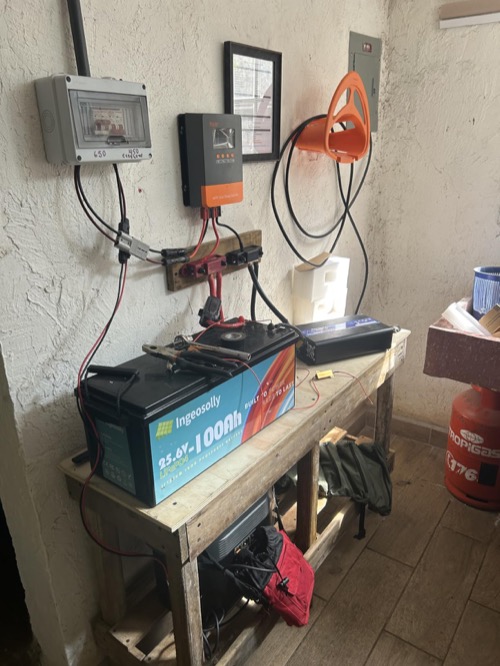

One owner already using a SmartShunt described a smooth move from a difficult PowMr setup to the Victron ecosystem. Another monitored the open Bluetooth data with a Raspberry Pi while using Victron software for control. A further reviewer preferred the newer Windows app because the phone display felt cramped.

The app is strong but local-range. Remote internet access requires a GX-class system or other supported hardware. Record the PIN labels and settings before final installation. A phone-free user may prefer a controller with a physical LCD or budget for an external display.

Interface decision — Built-in Bluetooth removes a dongle, not the need to choose a monitoring architecture. Decide whether you need local phone access, a permanent display, open-data integration, or true off-site monitoring.

Battery Sensing and Cold-Charge Protection Need the Right Hardware

The 100/50 supports adaptive presets and a user-defined algorithm for lead-acid and lithium batteries. Internal sensing is standard. Compatible VE.Smart battery voltage and temperature sensing can improve information at the battery and enables configurable low-temperature behavior in a supported system.

One RV owner bought a separate Victron temperature/voltage sensor because the batteries sat on the ground while the controller was inside. That is a sensible response to spatial temperature differences. Another owner assumed the controller lacked temperature sensing entirely; the more precise statement is that battery-level external data requires compatible additional sensing.

For LiFePO4, match charge voltage, maximum current, float policy, and low-temperature threshold to the exact battery/BMS manual. For lead-acid, confirm temperature compensation and sensor placement. Do not infer the battery’s state or temperature solely from controller-enclosure measurements.

Passive Cooling Is Quiet, Not Permission to Enclose It

The controller uses passive cooling and is rated at 98% peak efficiency. It measures about 130 × 186 × 70 mm and weighs 1.3kg. Owners described silent operation and generally reasonable temperature, though load, ambient heat, and airflow differ.

Victron rates the electronics IP43 and the terminal area IP22. It needs a dry protected location, correct vertical orientation, and manual-specified clearance. Do not interpret an owner’s “outdoor” or boat use as proof that exposed terminals tolerate weather.

Terminals accept up to 16mm² / AWG 6 according to the normalized specification. One detailed comparison owner said 4 AWG would not fit; another European owner reported 16mm² fitting securely. These accounts align with the published maximum. Size the circuit first and verify that the chosen conductor terminates without strand removal.

No Physical Load Output Means Cleaner Boundaries

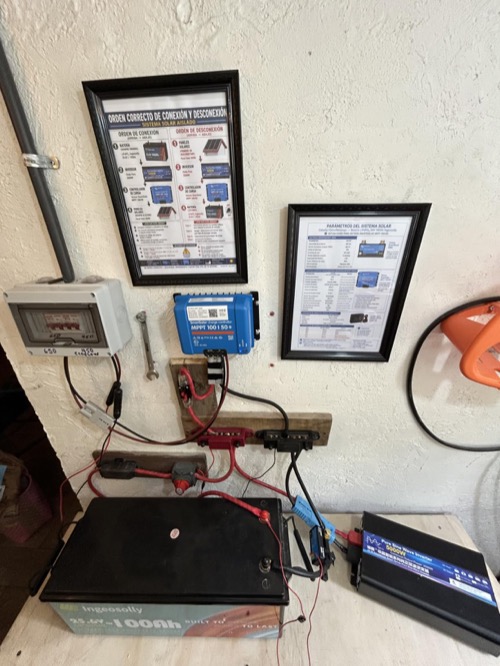

The 100/50 has no physical load terminals. Large inverters and DC distribution connect to a protected battery bus. Virtual load control can be implemented through VE.Direct and suitable external hardware, but it is a control architecture rather than a 50A accessory outlet.

This absence can be an advantage in larger systems: it discourages routing high-current loads through the controller. Buyers needing built-in dusk lighting or direct low-voltage disconnect should compare the Rover line or plan external battery protection and switching.

It also clarifies failure domains. The controller can charge while a separate battery monitor, inverter, and distribution system handle consumption. That modular approach costs more hardware, but service and protection can be designed around each circuit instead of depending on one controller output for unrelated loads.

100/50 Design Checklist

• Confirm that the battery remains 12V or 24V for the controller’s service life.
• Calculate every string’s cold-corrected Voc below 100V.
• Add parallel-string Isc and stay within 60A plus required design rules.
• Use the 700W or 1,400W row for the actual bank.
• Verify the battery accepts up to 50A or configure a lower limit.
• Decide whether VictronConnect alone meets local/remote monitoring needs.
• Add compatible battery sensing when temperature or voltage drop requires it.
• Size conductors and protection; confirm AWG 6 / 16mm² terminal fit.
• Provide protected IP22/IP43 mounting and passive-cooling clearance.
• Connect inverters and distribution to a properly protected battery bus.
