Solar Charge Controller Comparisons

Compare controller type, rated charge current, maximum PV open-circuit voltage, maximum PV short-circuit current, allowed PV power by battery voltage, supported battery profiles, low-temperature lithium behavior, monitoring, terminal limits, environmental rating, warranty, and required accessories.

No. Two 30A or 40A controllers can have very different PV-voltage ceilings, PV-current limits, conversion behavior, battery settings, thermal derating, monitoring, and warranties. The shared amp rating is only one comparison point.

Only when your array design benefits from the extra voltage headroom. A higher PV-voltage ceiling can support longer series strings and reduce cable losses, but it does not automatically improve charging quality or reliability. Always calculate cold-weather open-circuit voltage before choosing.

Choose from the array's expected charging power and the battery-bank voltage, then allow a sensible design margin. A 40A model supports more charging output, but a 30A unit may be entirely sufficient and can be the better value for a smaller array.

A local display is quick to read and does not depend on a phone. Bluetooth usually provides easier configuration and deeper history. The best choice depends on how often you tune or diagnose the system; some controllers provide both, while others charge extra for a communications module.

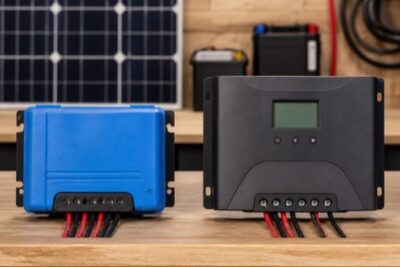

The Victron favors built-in Bluetooth, detailed documentation, and a polished app, while the Renogy provides a higher 40A output rating and a local screen. Array voltage, required charge current, interface preference, and total accessory cost should decide the winner. See our full Victron 100/30 vs Renogy Rover 40A comparison.
