AMPINVT 60A MPPT Review: Big Limits, Bigger Due-Diligence Burden

The AMPINVT APC190060 is easy to understand on paper: 60A charge output, a 150V PV ceiling, support for battery banks from 12V through 48V, a front display, and a price below many premium controllers in the same electrical class. Those specifications can make it attractive for a cabin, workshop, or secondary off-grid bank.

The owner evidence makes the decision less comfortable. supplied reports include successful multi-year or multi-unit service, accessible parameter controls, and sturdy metal construction. They also include a unit that stopped after nine months, a display that failed after two months, loud fan comments, voltage-calibration concerns, an expensive Wi-Fi accessory, and sharply different experiences with support. This is a capacity-first purchase, not the safest default recommendation.

AMPINVT's Large Envelope Requires a Formal Acceptance Test

The expanded exact-ASIN evidence preserves the AMPINVT 60A controller’s appeal while raising the due-diligence bar. Owners describe useful charging, broad settings, substantial array capability, and systems ranging from cabins to larger battery banks. Critical accounts discuss fan noise, display lockups, failed units, unclear lithium behavior, costly communications hardware, and difficulty obtaining technical help.

No owner pool can predict reliability across all units. It can, however, tell a buyer what to test before the return window closes. For this model, that means every input and output limit, the local display, fan response, battery profile, error recovery, and any RS485 or Wi-Fi workflow that influenced the purchase.

A 60A charge path needs a battery bank that can accept the configured current and conductors that fit the actual terminals without modification. If the controller offers a high PV-voltage ceiling, calculate cold Voc rather than relying on a warm operating reading. If lithium is selected, compare every charging stage with the battery maker’s requirements; a chemistry label is not a complete profile.

Communications should be treated as a separate subsystem. Confirm which accessory is included, which protocol is exposed, whether local operation remains possible without the network, and what history survives a restart. Buyers who need polished remote monitoring or a clearly accountable service chain should include that requirement in the comparison—not assume the low hardware price includes it.

Why 150V and 60A Can Be Useful Together

AMPINVT publishes 150V maximum PV input and 60A maximum battery-side output. The power table scales from 900W at 12V to 1,700W at 24V, 2,700W at 36V, and 3,400W at 48V. This lets a designer raise array voltage to reduce current on a long PV run while selecting a bank voltage suited to the inverter and conductor plan.

That flexibility does not merge the limits. Cold-corrected array Voc must remain below the exact current manual’s ceiling. Total parallel-string Isc must comply with an input-current rule that was not published in the supplied evidence. Battery-side current must remain acceptable to the bank and its BMS. The wattage row must match the selected battery voltage.

One supplied buyer noticed apparently conflicting 24V voltage information and postponed installation while translating the manual. That account illustrates why a marketplace headline cannot settle a high-energy design. Obtain the manual for APC190060—not a neighboring 40A or 80A family member—and reconcile every voltage table before buying panels.

Sizing stop — A 150V label is not a target operating voltage, and 60A output is not the permitted array short-circuit current. If the exact PV-current boundary remains unavailable, do not improvise a parallel-string allowance.

Owner Evidence Splits into Three Different Stories

The positive story is straightforward. Several owners described easy parameter changes, a useful display, a substantial enclosure, and successful charging. One used the unit as a secondary controller at an off-grid cottage; another bought a second AMPINVT as their system expanded. A Spanish-language owner reported more than a year of satisfactory service.

The support story is equally mixed. The long edited review initially described unanswered contact attempts, then later praised a named representative for sending a replacement. The nine-month failure report said there was no useful warranty support. Different sellers, dates, and escalation paths may contribute, but the buyer should not assume a uniform support experience.

This distribution rules out both extremes. It would be inaccurate to call the controller proven junk, and equally inaccurate to call it reliable simply because most supplied ratings were positive.

Lithium Settings Need Independent Verification

The controller supports lithium plus sealed/AGM, gel, and flooded lead-acid profiles, with user-defined lithium parameters. An external battery-temperature sensor is documented. No controller-managed low-temperature lithium cutoff was established in the reviewed evidence.

One owner set a conservative LiFePO4 maximum, measured the battery with a Fluke meter, and found the controller reading about 0.1V different. The reviewer also questioned a displayed 0.5–0.65A after the chosen voltage threshold and planned to verify it with a clamp meter. This is a single unfinished investigation, not proof of systematic overcharging. It is, however, a strong reason to commission with independent measurements.

For LiFePO4, copy neither the listing default nor another owner’s 13.7V/13.8V choice. Use the exact battery maker’s voltage, current, float, and temperature instructions. Establish which component prevents cold charging. For lead-acid, place the external sensor as directed and confirm how temperature compensation changes absorption and float values.

Commissioning requirement — Record the controller reading and an independent battery-terminal measurement at several charge stages. If the difference is material to the battery’s limit, correct the cause or configuration before unattended operation.

Display and Wi-Fi Are Not the Same Monitoring Tier

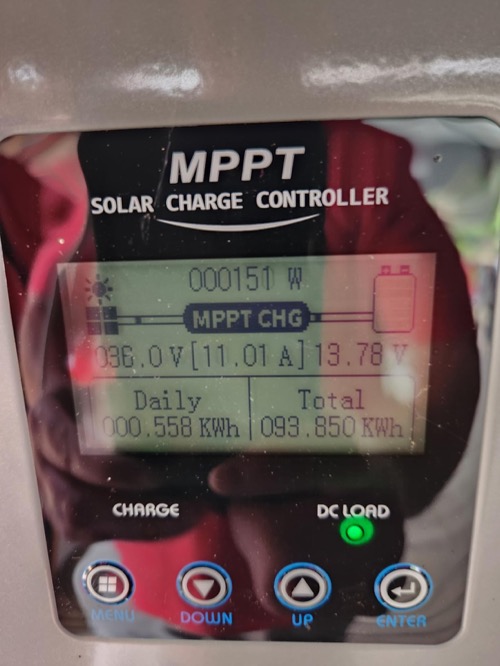

The front LCD is a meaningful advantage over app-only controllers. It shows current operating information and history without a phone. owners repeatedly liked the menu and display when the hardware worked.

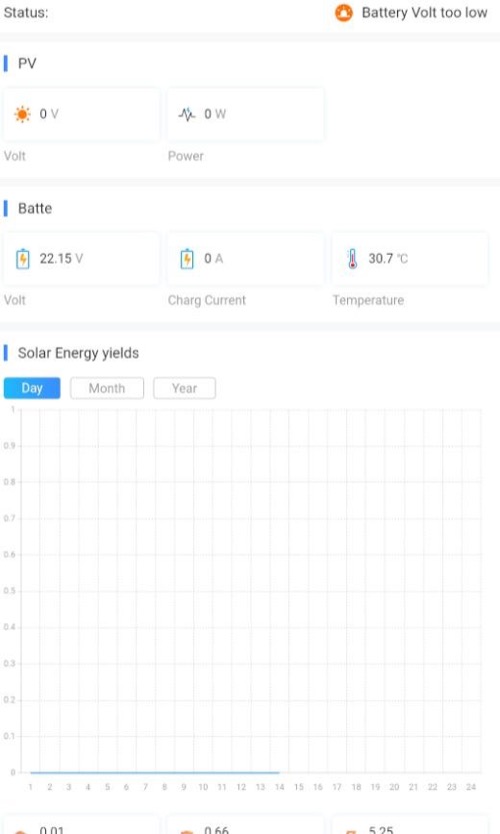

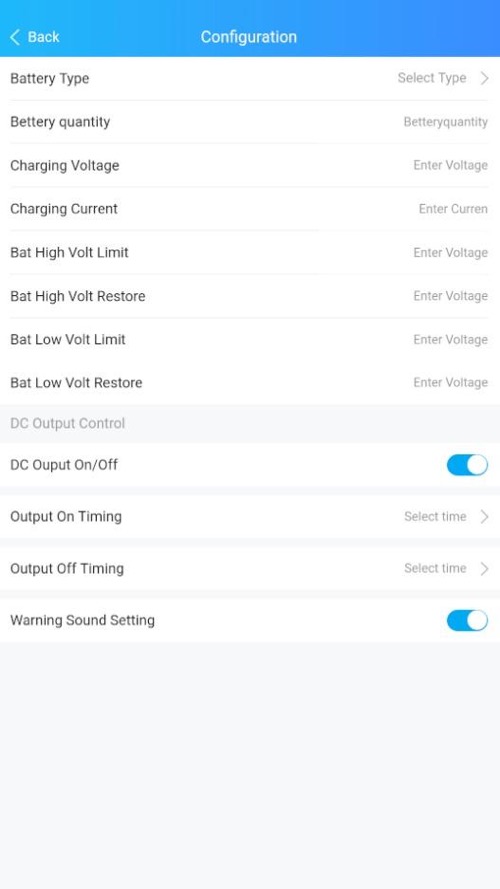

Remote monitoring is optional through RS485 and an additional Wi-Fi box. One reviewer called the accessory expensive, described inconsistent communication and setting changes, and said some displayed information appeared inaccurate. Another could continue watching charge data through the module after the physical display failed, but said a promised summary histogram did not work.

Treat the optional module as a feature requiring its own validation. Identify the exact protocol, local-versus-cloud dependency, app version, data retention, and whether settings can be changed reliably. If remote alarms are essential for an unattended property, a mature monitoring ecosystem may justify a more expensive controller.

Fan Cooling Changes Where It Belongs

The AMPINVT uses active cooling. One owner called the fan loud; a comparative reviewer also characterized AMPINVT fan noise as a downside. Fans can help remove heat from compact power electronics, but they introduce sound, dust exposure, and a moving component.

No formal IP rating or complete operating-temperature range was available in the reviewed evidence. The controller belongs in a dry, ventilated, serviceable space—not an exterior wall, battery box with corrosive vapor, or sealed cabinet. Plan intake and exhaust clearance using the exact manual and keep cable routing away from airflow obstruction.

The dimensions and maximum terminal wire size were also absent from the normalized evidence. That omission matters at 60A. Resolve conductor capacity, terminal geometry, torque, fuse/breaker size, and bend radius before purchasing cable. Never reduce conductor strands to fit a terminal.

Do Not Use an Undocumented Load Circuit as an Inverter Switch

The normalized exact-model specification does not establish a dedicated load-output rating. One detailed owner described using a DC-load function to control an inverter drawing roughly 30A and later finding the switch stuck on. The same reviewer eventually recommended limiting the control circuit to roughly 10A and using a suitably rated relay or contactor for the actual load.

That is one person’s post-failure workaround, not a manufacturer-approved design. High-current inverters belong on a properly fused battery bus. If a low-current controller signal is used to operate external switching hardware, confirm the signal rating, coil or gate requirements, fault behavior, and manual authorization.

AMPINVT 60A Versus Renogy and Victron Alternatives

Renogy’s Rover Lite 60A shares the 60A and 150V class while providing a three-year warranty and more complete enclosure/dimension documentation. It is larger and Bluetooth still costs extra. Victron’s 150V models bring stronger documentation, integrated Bluetooth, and a five-year warranty, but equivalent current can cost substantially more and may require selecting a different model size.

The AMPINVT case rests on purchase price and electrical breadth. That value erodes if the project requires the costly Wi-Fi module, silent operation, proven support, or a replacement after early failure. Conversely, a skilled owner with local monitoring and a secondary system may rationally accept those risks.
