ACEIRMC 30A PWM 2-Pack Review: Two Cheap Controllers, Two Sets of Unknowns

The ACEIRMC package supplies two nominal 30A PWM controllers for less than many brands charge for one basic unit. Each has automatic 12V/24V detection, an LCD, programmable load behavior, and dual USB outputs. That can be appealing for two chicken coops, sheds, fences, or maintenance batteries.

The price is also the warning. The reviewed evidence does not publish maximum PV Voc, PV Isc, allowable panel watts, terminal capacity, load-output current, ingress rating, operating temperature, dimensions, or warranty. The owner sample contains two different one-of-two failures and a serious reverse-drain allegation. This cannot responsibly be treated as a documented 30A power component.

Evidence basis — Solar Power Picks did not test either controller. We reviewed the exact two-pack listing record and 11 short Amazon reports. The entire owner sample contains only about 350 words, so the article emphasizes what cannot be verified instead of inflating weak anecdotes into performance claims.

The Two-Pack Changes the Value Calculation

A two-controller bundle is not the same as a redundant controller. Each unit operates its own panel, battery, settings, conductors, and protection. If one fails, the other does not automatically take over unless the entire system was deliberately engineered for that behavior.

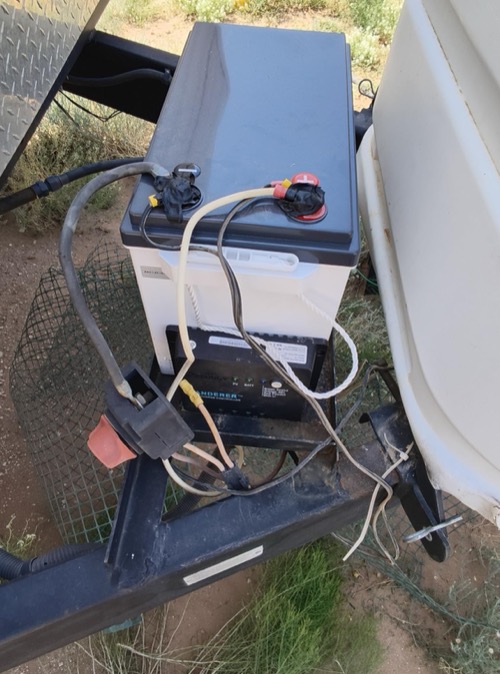

The bundle makes most sense for separate modest systems. One owner ran two 85W panels with a 12V battery and one or two automotive fans in a chicken coop for several months. That is a concrete use case: low-voltage ventilation where replacement cost is modest and failure is visible.

Do not describe the box as a 60A solution. The nominal 30A marking belongs to each controller, and the supplied evidence does not validate even that rating with terminal, thermal, or panel limits.

Bundle rule — Two unknown 30A envelopes do not become one known 60A envelope. Treat every unit as a separate, conservatively sized controller until exact documentation proves otherwise.

What the 30A Label Does Not Tell You

PWM controllers switch panel energy toward battery voltage rather than converting a higher PV operating voltage into additional battery current. A suitable array normally uses panels electrically matched to the bank. Series wiring or a high-voltage module can exceed an unpublished ceiling without delivering the MPPT benefit buyers may expect.

The listing record calls each unit 30A, but does not disclose PV Voc, PV Isc, panel watts, or terminal capacity. Those omissions prevent a responsible design near 30A. A small 85W-panel installation provides evidence for that scale only; it cannot validate ten times the power.

An owner said the holes were small and exact amperage was not visible. Another mentioned needing overhead clearance for mounting screws. These physical details reinforce that the controller should be dry-fitted before cable purchase.

Lead-Acid Only Means Exactly That

The reviewed product material lists open/flooded, AGM, gel, and other lead-acid modes. Lithium is not supported. The controller’s three-stage direct, boost, and float behavior is intended around lead-acid assumptions.

Do not connect LiFePO4 because a USB output or adjustable display resembles a newer lithium-capable model. Battery profile labels can change across visually similar generic controllers. Use the exact model/revision and verify its programmed voltages against the battery maker.

For lead-acid, confirm absorption/boost, float, and any equalization behavior. Automatic 12V/24V detection still needs verification at commissioning. Connect sources in the exact documented order; one owner summarized a battery-first, panel-second sequence, but the current manual should govern.

Chemistry warning — The low purchase price does not justify experimenting with an unsupported lithium bank. Use a controller with a documented LiFePO4 algorithm and temperature strategy.

The Reverse-Drain Report Needs Careful Handling

One one-star owner reported substantial overnight reverse current from battery toward the panel side, claiming a full battery fell to about 45%. The reviewer installed Schottky diodes on input and output paths. This is a serious allegation, but it is one account with no independently verified circuit, battery capacity, load inventory, or measurement log.

Do not copy the diode modification automatically. A diode introduces voltage drop and heat, may interfere with sensing, and does not correct an internal fault. First isolate loads, measure current safely at night, verify polarity, inspect wiring, and contact the seller/manufacturer. A controller that permits material reverse current should be removed from service.

Two Different Partial Failures Matter

One three-star buyer said only one controller worked on arrival. Another reviewer reported that one unit’s battery-voltage display became inaccurate after eight months; the seller offered a refund for the broken unit while the second remained satisfactory.

These reports are unusually relevant to a two-pack. A bundle can conceal a 50% failure experience behind an apparently usable purchase. They do not establish a statistical defect rate, but they undermine the assumption that buying two guarantees a dependable spare.

Other reports are short: “works,” “good price,” or general praise. They confirm receipt and basic operation, not 30A performance or long life.

LCD, USB, and Load Output Are Convenience Features

The LCD displays battery status and voltage; buttons select modes; two USB ports can power small devices. Exact USB ratings were not captured. One owner valued the status display, while another said exact current was unavailable.

Programmable load terminals may support timer or low-voltage behavior, but the continuous and surge rating is missing. The chicken-coop automotive fans are a more demanding load than small LEDs because motors can draw extra startup current. A battery-side fused circuit and appropriately rated relay may be safer, but only a documented control-output rating can authorize the controller’s role.

The enclosure is not waterproof. Multiple owners explicitly kept it from direct weather. Mount it inside a dry ventilated box while preventing condensation and retaining airflow.

What a Responsible Small Installation Looks Like

The article cannot supply a universal panel size because the manufacturer did not supply the necessary limits. A defensible project remains well below the nominal 30A class, uses one voltage-matched panel, a supported lead-acid battery, short conductors, separate protection, and visible operation.

Two-Pack Commissioning Checklist

• Label the two units A and B and record serial/revision markings.
• Test each independently with the same modest known-good panel and battery.
• Verify 12V/24V detection before enabling loads.
• Compare both displays with a suitable meter.
• Measure nighttime current after isolating other loads.
• Confirm no unit or connection heats abnormally.
• Keep both controllers dry and ventilated.
• Do not parallel outputs or combine ratings without written approval.
• Retain seller details and test within the return period.
• Replace any unit with unstable voltage, reverse flow, failed display, or poor clamping.

Alternatives Cost More Because They Publish More

The Renogy Wanderer 10A is lower-current but provides clearer voltage, power, terminal, and environmental information. ECO-WORTHY’s 30A Bluetooth PWM adds a documented 50V ceiling and app access, though its own owner evidence is mixed. A small Victron SmartSolar costs more but provides explicit Voc/Isc and MPPT conversion.

The comparison should be based on the cost of uncertainty. If the array, battery, or structure is valuable, spending more for published limits and support may be cheaper than diagnosing drain or replacing a failed unit.

The two-pack still has a legitimate educational niche. Two independent benches can demonstrate PWM charging, load timers, or panel orientation without sharing one battery circuit. Even there, use fused low-energy sources, supported lead-acid batteries, and supervision. A classroom or hobby setting should expose the limitations explicitly rather than presenting the front-panel 30A label as verified engineering data.
