SOLPERK 8A IP67 Review: When Two LEDs Are Not Enough

The SOLPERK 8A IP67 PWM controller is a compact 12V battery maintainer with fixed leads and a weather-resistant enclosure. It is aimed at cars, boats, trailers, sheds, and other small systems where a screen or app would be unnecessary. Multiple owners describe straightforward charging, and one watched the voltage cycle with a meter rather than trusting the indicators alone.

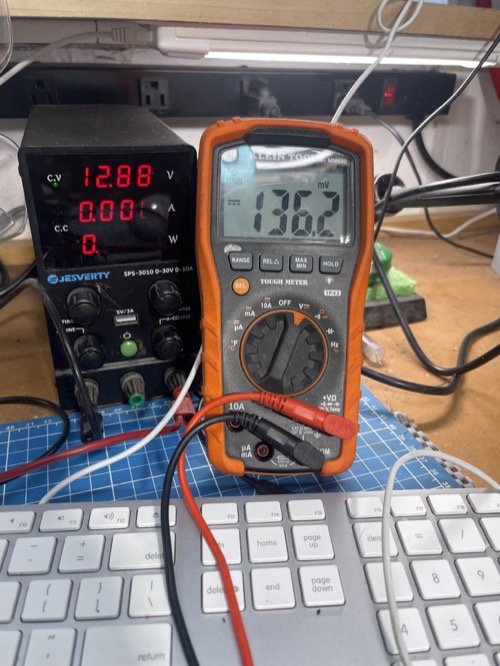

That meter-first approach is essential. The supplied owner evidence includes a sailboat expedition in which the panel failed while the controller continued flashing as if the system were healthy, a measured 136mV on the PV side at night in a reverse-leakage investigation, unclear LED behavior, and conflicting statements about battery chemistry and connection order.

An 8A Sealed Controller Is a Maintainer, Not a System Monitor

The expanded exact-ASIN owner record supports the SOLPERK 8A as a compact charging component for maintainers and small outdoor systems. Positive accounts describe restored or maintained batteries, simple installation, and useful sealed construction. Critical accounts mention batteries that did not charge as expected, ambiguous LED behavior, failures, connector or wiring issues, and difficulty distinguishing a controller problem from a panel or battery problem. These are diagnostic themes, not a reliability rate.

The controller’s two-light interface communicates far less than a numeric display. Before installation, record battery open-circuit voltage and panel Voc. After connection, measure voltage at the battery and controller under sunlight, then check whether the battery voltage rises appropriately over time. An LED labeled “charging” does not reveal actual current, battery acceptance, or whether cable voltage drop is limiting the system.

Eight amps is the battery-side limit, not a promise that every connected panel will produce 8A. The protected specification set does not publish a maximum PV Voc or wattage table, so exact manual limits must govern array selection. The controller has no programmable load terminals, app, or communications path; loads should connect through separate protected battery distribution.

Choose the SOLPERK when sealing, simplicity, and modest current are the priorities. Choose a controller with a numeric display or external monitor when troubleshooting access is difficult or battery condition matters operationally. A sealed black box is convenient only when the surrounding system can be measured.

The Sailboat Report Changes the Buying Decision

The most important owner account is not a cosmetic complaint. During an expedition-style sailboat race, a buyer lost navigation-light power and had to limit electronics use and recharge at checkpoints. The controller’s red and green indicators continued flashing even though the solar panel had apparently failed. Later checks reportedly showed PV open-circuit voltage fluctuating from about 7V to 17V but only a few milliamps of current.

The controller may have detected voltage while being unable to determine that the panel could not supply meaningful current. That distinction is fundamental: open-circuit voltage can appear plausible even when a module, connection, or conductor cannot deliver power under load. Two indicator lights cannot replace a current measurement.

Diagnostic rule — For any battery supporting navigation, access control, communications, or safety equipment, verify current and battery condition independently. A status LED is an alert, not a complete monitor.

This is also a system lesson, not proof that the controller caused the panel failure. The reviewer believed the panel may have been damaged during transport. The controller’s contribution was weak diagnostics: its behavior reassured the operator when the energy source was no longer useful.

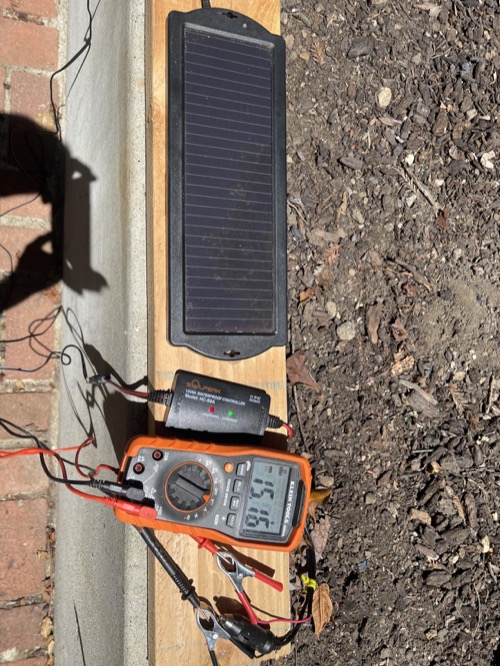

One Owner Measured the Charge Cycle

That report is valuable because it supplies actual observations and distinguishes voltage behavior from LED wording. It is not a laboratory validation: battery chemistry, temperature, meter accuracy, initial state of charge, and current were not published. Still, it shows that the unit can regulate a small system and that the instructions may not map cleanly to what an owner sees.

Another owner reported success with a 100W panel and a 100Wh lithium battery. That anecdote confirms only that one combination appeared to work for that buyer. It does not prove the exact controller revision supports the battery’s chemistry or that a 100W panel remains within every electrical limit.

The Chemistry Evidence Conflicts

The canonical evidence profile describes lead-acid compatibility and says the exact supported chemistries must be verified in the current instructions. However, one buyer posted a response attributed to SOLPERK support saying the controller would recognize lead-acid, AGM, or lithium iron phosphate. That wording is not enough to establish a safe lithium profile.

Automatic chemistry detection is a substantial technical feature and should appear consistently in the exact manual and labeling. A controller may infer system voltage, but reliably identifying chemistry from terminal voltage alone is difficult because voltage ranges overlap. The supplied evidence also documents no low-temperature LiFePO4 charge cutoff.

Chemistry warning — An Amazon review repeating a support message is secondary evidence. For lithium, require the exact model’s current manual, suitable setpoints, battery-maker approval, and documented low-temperature protection somewhere in the system.

Connection Order Is Also Product-Specific

The same owner questioned instructions that said to connect the solar panel before the battery. A response attributed to SOLPERK said either order was acceptable because this controller is powered from the panel. Many other controllers require battery-first connection so they can identify system voltage before PV is applied.

Do not generalize either sequence. Match the model and hardware revision, isolate sources while wiring, verify polarity, and follow the current official instructions. Similar-looking SOLPERK 8A and 10A products can have different voltage, chemistry, and commissioning details.

The fixed leads simplify installation but limit cable selection. Any extension must be sized for maximum current and voltage drop, and every connector must retain appropriate weather protection. IP67 on the controller body does not rate a user-added SAE junction, fuse holder, or battery terminal.

The Nighttime-Leakage Evidence Is Specific

That is more specific than an unexplained “drains battery” review, but it still omits current. Voltage appearing across an open circuit does not tell us the magnitude of leakage or whether it alone could discharge that battery in a week. The battery, attached loads, panel, and measurement setup were not independently checked.

The conclusion should therefore be “verify reverse current,” not “every unit drains batteries.” The report raises enough concern that an unattended vehicle or boat deserves an overnight check immediately after installation and periodically afterward.

IP67 Is Useful but Narrow

One owner replaced controllers that rusted during a fishing season and said these waterproof units worked better. Other buyers valued outdoor use. That supports the practical appeal of a sealed body. It does not establish the laboratory test conditions, long-term UV resistance, corrosion performance, or protection of the rest of the circuit.

The highest-risk locations often sit outside the controller: cable terminations, connectors that trap water, fuse holders, panel junction boxes, and battery posts. Position connections to shed water, provide strain relief, protect against abrasion, and use components rated for the environment. On boats, follow applicable marine electrical practice rather than assuming an IP label resolves corrosion and ignition concerns.

Energy Sizing Matters More Than “Maintainer” Marketing

A 3.5W panel may offset self-discharge in a lightly used vehicle under favorable sun. It will not recover meaningful daily consumption quickly. A 20W panel and 20Ah battery can support modest navigation lighting only if production exceeds all loads and losses. A 100W panel is a larger source, but the controller’s missing PV watt, Voc, and Isc limits prevent a blanket recommendation.

A Commissioning Plan That Catches the Known Failure Modes

1. Confirm the exact 8A model, serial/revision information, and current manual.
2. Resolve battery-chemistry support before connecting the battery.
3. Record panel Voc, Vmp, Isc, Imp, and the controller’s actual published limits.
4. Verify polarity and the model-specific connection sequence.
5. Protect the battery circuit and weatherproof every field connection.
6. Measure PV current under load, not only open-circuit voltage.
7. Observe the full charge transition and note actual LED behavior.
8. Apply a known load and confirm the controller resumes charging appropriately.
9. Check reverse current and battery voltage overnight.
10. Recheck after transport, storms, storage, or any unexpected LED pattern.
