Renogy Rover 40A Review: Useful Output, LCD, and Installation Caveats

Quick Verdict on the Renogy Rover 40A

This Renogy Rover 40A review finds a capable controller for 12V/24V systems that can actually use more than 30A and benefit from an included local LCD. Renogy documents a 100V PV ceiling, 520W and 1,040W array limits, several battery profiles, an included temperature sensor, IP32 construction, and a three-year warranty. Owners describe successful RV, camping, and off-grid systems, including several 400W arrays.

The main hesitation is installation evidence. Two detailed owner reports describe a loose connection or heat damage around a terminal, although another owner explains that conductor placement inside the clamp can be easy to misread. Bluetooth is also optional rather than included, and the current product page does not publish an exact-model PV Isc limit.

Evidence Note — This review uses Renogy’s exact-model documentation and 13 captured Amazon reviews. Solar Power Picks did not install or electrically test the controller.

Evidence Snapshot

The August 3, 2026 Amazon snapshot showed a 4.4-star average from 1,455 ratings or reviews and a $228.90 price. The captured exact-variant set contains 13 reviews: eleven five-star, one four-star, and one one-star. Several reports describe specific arrays, batteries, load-terminal use, installation steps, or long-term RV service.

The sample is useful because it contains both positive and negative technical detail. It is still too small and self-selected to calculate defect frequency. The one-star report combines product failure and a warranty dispute, while a separate four-star report describes a melted terminal on one of two similarly used Rover controllers.

Manufacturer documentation supplies the values in the specifications table. Owner measurements remain attributed to their individual systems and are not treated as laboratory confirmation of efficiency.

Electrical Limits and Array Sizing

Rover’s 40A rating describes maximum battery-side charge output, not allowable PV input current. Renogy publishes a 100V maximum PV open-circuit voltage and array-power limits of 520W for 12V and 1,040W for 24V. Its current product page does not publish maximum PV short-circuit current, so that value should be confirmed in the current exact-model manual before a parallel-string design is finalized.

One detailed owner used four 100W panels in parallel with two 125Ah batteries and observed about 18.5A under the described conditions. That reviewer initially expected a simple 400W ÷ 12V result, but panel operating voltage, irradiance, temperature, battery voltage, state of charge, and conversion losses all affect real current. The report is useful context, not proof that every 400W array will produce the same value.

Another RV owner reports four 100W panels and year-plus service with lithium batteries. The system description supports practical compatibility but does not establish a controlled yield comparison with another controller.

Compatibility Check — Verify cold-corrected Voc, the exact Isc limit, PV watts for battery voltage, 40A output, and battery/BMS charge current separately.

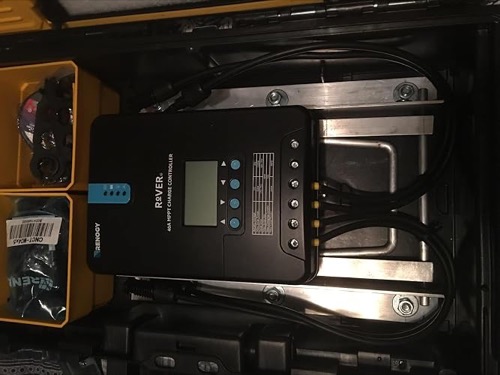

Terminals, Enclosure, and Installation

Renogy publishes a maximum terminal size of 10 mm² or AWG 8. The controller measures 238 × 172 × 77 mm and weighs 2 kg, making it substantially larger than simple PWM units. The included remote temperature sensor and local LCD add installation value, while IP32 still requires a protected, dry mounting location.

Terminal feedback is the review’s most important caution. One owner running two controllers reported melted plastic near the positive battery terminal on one unit after several sunny days reaching roughly 35A. The reviewer suspected poor contact partly because the conductor position was difficult to see. A one-star owner reported repeated cable disconnections and returned the controller. Neither account proves that every unit or clamp is defective.

A different detailed installer explains that the clamp can accept a conductor incorrectly if it is placed on the wrong side of the moving plate. That account offers a plausible installation mechanism without disproving the other owners’ experiences. The correct response is careful manual-based preparation, placement, torque, strain relief, and inspection—not dismissal or alarmism.

Installation Check — A hot, loosening, discolored, or softened terminal is not normal. Isolate the system and follow the manufacturer or a qualified installer’s diagnostic procedure.

LCD, Bluetooth, and Setup

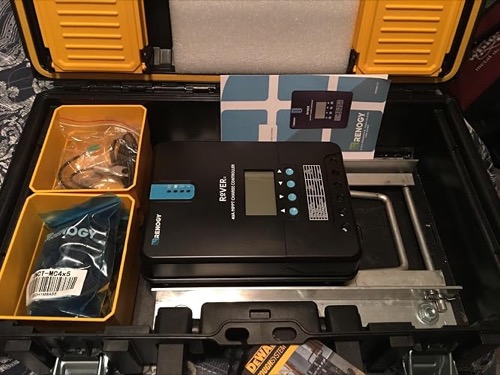

The built-in LCD distinguishes Rover from phone-first controllers. It shows battery voltage, charging status, current-related information, load state, and menu options without requiring a mobile connection. One camping-system owner considered that a major upgrade over LED-only PWM hardware.

Bluetooth requires Renogy’s BT-2 module, sold separately. The DC Home app can provide real-time information, history, settings, firmware updates, and alarms, but captured feedback is mixed. One desert RV owner found the module needed periodic unplugging and reconnecting. Other owners praise the overall controller but do not discuss app stability.

Documentation also receives mixed feedback. A detailed owner says the instructions were easy enough to follow and created a laminated quick reference. Another says Renogy’s instructions were thin and adds specific installation notes learned during setup. Buyers should download the current manual before mounting the controller, especially when lithium settings, load terminals, or the optional communication module are involved.

Battery Support and Charging Behavior

Renogy documents sealed/AGM, gel, flooded, and lithium support. Lead-acid charging uses multiple stages; lithium uses a simpler profile and low-temperature protection. Battery voltage is automatically detected for non-lithium configurations, while lithium setup deserves explicit confirmation rather than relying on automatic behavior.

The included remote sensor supports temperature compensation where the selected chemistry uses it. For lithium, verify the exact cutoff mechanism and whether the battery BMS provides the primary cold-charge protection. A controller feature and a battery-level BMS rule can complement each other but are not interchangeable.

Several owners who moved from PWM or lower-capacity hardware report faster or more satisfactory charging. One buyer says the Rover replaced an inconsistent budget MPPT controller; another describes strong service in a 400W RV system. These comparisons are not standardized, so they support owner satisfaction rather than a universal efficiency advantage.

What the Sampled Owners Report

Most reviewers are positive, but the technically detailed terminal reports carry more decision value than several short approvals. They do not justify calling Rover unsafe; they justify making conductor installation and inspection part of the buying decision.

Warranty and Long-Term Ownership

Renogy publishes a three-year warranty for this Rover model. Buyers should retain purchase records, photograph the completed wiring, and read the current exclusions before commissioning. A warranty does not replace installation quality, and it may not cover damage caused by conductor preparation, incorrect torque, incompatible equipment, moisture, or operation outside documented limits.

The captured sample includes multiple owners describing year-plus service or repeated use in RV and camping systems. It also includes one complaint that Renogy denied an earlier controller claim because of another charging source in the system. That owner’s account cannot establish the exact warranty facts, but it shows why multi-source systems should be documented carefully and cleared against each manufacturer’s instructions. Support expectations and system architecture belong in the purchase decision alongside amp rating and price.

Buying and Commissioning Checklist

Begin with the question that justifies this model: can the battery and array use more than 30A? If not, the Rover’s higher rating may provide no advantage over a smaller controller. Confirm the 520W or 1,040W array limit for the selected battery voltage and obtain the current manual’s exact PV Isc ceiling before choosing parallel strings.

The physical plan deserves equal attention. Check that AWG 8 or smaller conductors satisfy the full voltage-drop and temperature calculation, that each wire will enter the clamp in the documented position, and that the terminals remain visible for retorque or inspection if the manual requires it. Price the BT-2 before comparing total monitoring cost.

• Verify cold-corrected Voc, exact Isc, and PV watts.
• Verify battery chemistry, BMS current, sensor, and low-temperature rules.
• Verify conductor preparation, terminal torque, strain relief, and protection.
• Verify enclosure ventilation, LCD access, and optional Bluetooth cost.

Owner Pattern — Rover’s strongest recurring benefits are its local display and successful small-system use. Its clearest risk signal is connection friction, not a proven population-wide failure rate.

System-Fit Matrix

Alternatives Worth Comparing

The Victron SmartSolar 100/30 is the cleaner choice when 30A is enough and Bluetooth matters. It has no local numeric screen, but app access is built in and its published Isc, terminal, and environmental data are more complete.

LiTime’s 30A MPPT includes both an LCD and Bluetooth. It is a practical LiFePO4-focused alternative when 30A fits, although its support and environmental documentation are less complete.

Rover earns its place when the extra output or local screen has system value. If neither changes the installation, its higher sampled price and optional Bluetooth make the decision harder to justify.

Who Should Buy It — and Who Should Skip It

Buy it if:

• Your 12V/24V system can genuinely use up to 40A.
• A built-in local LCD matters more than included Bluetooth.
• You can access, torque, and inspect the terminals properly.
• The controller will live in a protected, ventilated compartment.

Skip it if:

• The battery or array caps useful charge output at 30A or less.
• Bluetooth must be included in the controller price.
• Terminal access will be hidden or difficult to inspect.
• You cannot verify the exact-model PV Isc limit before final design.
