SOLPERK 10A Waterproof Review: Verify Polarity Before You Trust It

The SOLPERK 10A Waterproof PWM controller is built for a specific job: keeping a modest 12V or 24V lead-acid battery charged in an outdoor installation with convenient SAE connections. Its IP67 enclosure, fixed leads, automatic system-voltage detection, and 150W-at-12V or 300W-at-24V published limits make it appear almost plug-and-play.

The owner evidence says the hardware can work well on UTVs, gates, trailers, and other maintenance systems. It also exposes the checks that a simple product page can hide. One apparent dead-on-arrival report turned out to be reversed polarity; another unit reportedly drained a battery in daylight; a repeat buyer said the first controller began allowing nighttime discharge after about three years; and one unit was genuinely reported dead on arrival.

Evidence basis — This review uses the exact captured listing for ASIN B0946MWYPK and 13 Amazon owner reports. Solar Power Picks did not electrically test or water-test the controller. The sample is useful for identifying installation risks, not calculating a defect rate.

The Most Important Test Happens Before Connection

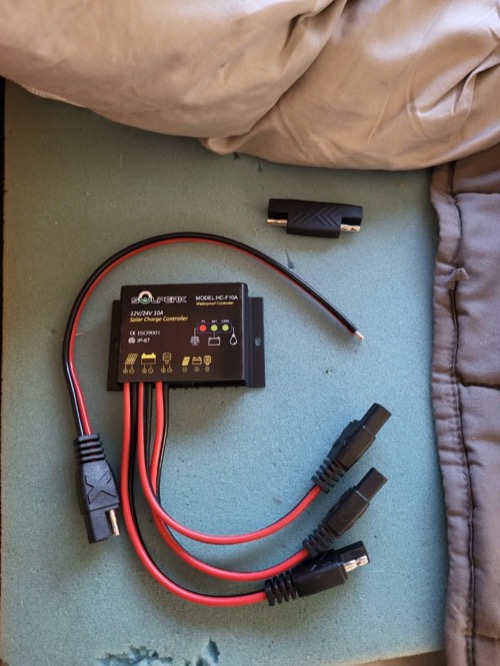

SAE two-pin connectors are mechanically convenient but do not guarantee that every product uses the same polarity orientation. Accessories, extension leads, and polarity-reversing adapters can leave exposed and recessed sides arranged differently. That matters because one captured buyer initially called this SOLPERK dead on arrival, then updated the review after discovering the polarity was wrong. The controller worked once the connection was corrected.

That correction is better evidence than a generic “easy installation” statement. It shows why color alone, connector fit, or a charging LED is not enough. Identify the positive and negative conductors from the exact instructions and verify them with a suitable meter before joining the panel, controller, and battery.

Polarity rule — Treat every SAE junction as electrically unverified until measured. Two connectors can fit perfectly and still place positive against negative.

What the Published 10A and Watt Limits Actually Allow

The published specification sets a 10A charge-current ceiling, 150W maximum PV power on a 12V battery system, and 300W on a 24V system. Those values are more useful than an amp label alone, but maximum PV open-circuit voltage and short-circuit current were not available in the reviewed evidence. Without those limits, this article cannot approve arbitrary series or parallel arrays.

One owner used a 100W flexible panel on a Polaris Ranger to charge a large auxiliary battery that powered a 3,000W inverter and heavy tools. That does not mean the controller can run a 3,000W load. The battery and inverter supply the tool power; the controller only replaces energy at the rate available from the 100W panel. The reviewer reported battery voltage around 13.9V under charging and down toward 12.5V with heavy use, but did not publish current or daily energy.

Another buyer said 50W was the maximum. That conflicts with the captured 150W/300W specification and appears to be the owner’s conservative interpretation, not the reviewed model’s published rating. Use the exact manual rather than repeating either number without checking the product revision.

PWM architecture also affects array choice. A higher-voltage panel does not gain the buck-conversion flexibility of an MPPT controller. Match the module and battery according to the current SOLPERK instructions, and do not treat unused voltage as free charging power.

IP67 Covers the Box, Not the Whole Solar Circuit

The sealed controller body is the strongest reason to choose this model over an exposed indoor controller. Owners specifically valued outdoor use. Yet IP67 applies to the rated enclosure under defined conditions; it does not automatically cover the SAE connector, extensions, fuse holder, splices, panel junction box, or battery terminals.

One repeat buyer said they add waterproofing and an additional waterproof 12V connector for a front-gate security-camera installation. That is evidence that experienced users still treat the field connections as separate exposure points. It is not a universal method or proof of the enclosure rating.

The short cable was a practical limitation for a Class A motorhome owner who wanted to mount the controller in the engine compartment. Extending the wire may solve reach but adds voltage drop and another connection. Calculate the run rather than selecting an extension only because its plug matches.

Battery Drain Is the Risk to Monitor

Two captured reports make reverse current the central reliability question. One buyer connected an AGM battery and 120W panel, started at 12.35V, and returned after weeks of reported direct sunlight to find 12.1V even though indicators looked normal. That result could involve the controller, battery condition, panel output, wiring, shade, or measurement timing; the review did not isolate each cause. It is still a credible warning because the system moved in the wrong direction while appearing active.

A second owner said a first controller lasted about three years before allowing the panel to discharge the battery at night and in low light. They repurchased the unit for a gate opener with a 10W panel. The account combines a meaningful lifespan with a meaningful failure mode. It does not support either “unreliable junk” or “set it and forget it.”

Commissioning rule — A charging light is not proof of positive daily energy balance. Record battery voltage and, ideally, current before installation, in full sun, after sunset, and the next morning.

For an unattended gate, camera, seasonal vehicle, or emergency battery, repeat the nighttime check periodically. A blocking component can fail after years even if initial commissioning was successful. Also investigate battery self-discharge, parasitic loads, shade, dirty modules, damaged wiring, and poor connections instead of assuming the controller is the only possible cause.

Lead-Acid Support Keeps the Use Case Narrow

The reviewed profile supports flooded, sealed/AGM, and gel lead-acid batteries. It does not document a lithium charging algorithm, configurable setpoints, temperature sensing, or low-temperature lithium cutoff. A battery BMS does not transform an unsuitable charging profile into an approved one.

Automatic 12V/24V recognition simplifies replacement installations, but automatic voltage selection cannot determine the battery manufacturer’s preferred absorption, float, equalization, or temperature-compensation behavior. Verify those values against the current instructions, particularly for gel batteries that may be sensitive to overvoltage.

There are no documented load terminals. Loads should be connected through a properly designed battery-side distribution and protection system, not improvised onto the controller’s fixed leads. Low-voltage disconnect requirements must be handled separately.

LEDs Make It Easy to Use and Easy to Misread

The controller offers status LEDs, not a numeric display, app, event history, or communications port. That is adequate when the operator only needs a basic solar/battery indication and uses independent instruments during setup. It is weak when the site is remote or the battery is mission-critical.

The Polaris Ranger owner understood this division well: battery and inverter performance were separate from the controller’s limited replenishment role. For a security gate or camera, the useful question is not merely “is the LED on?” but whether the array produces enough daily watt-hours after weather, cable loss, controller loss, and load consumption.

A Responsible SOLPERK 10A Commissioning Sequence

1. Photograph the controller label and obtain the matching current manual.
2. Verify battery chemistry, nominal voltage, health, and manufacturer charging limits.
3. Read the panel label and confirm PV watts plus all voltage/current boundaries.
4. Measure polarity at every SAE connector before mating it.
5. Install correctly sized battery-side protection and weather-protect field connections.
6. Follow the product-specific connection order in the current manual.
7. Measure battery voltage and charging current in useful sun.
8. Check for voltage drop along any extension and abnormal connector heating.
9. Measure for unwanted reverse current after dark.
10. Recheck the system after several days and at the start of each season.

How It Differs from the SOLPERK 8A

The 10A model supports automatic 12V/24V operation and publishes useful 150W/300W PV power ceilings. The captured 8A profile is 12V-focused and omits a published PV watt limit. Both use sealed enclosures, fixed leads, LEDs, and a simple PWM approach; both also have owner reports involving possible nighttime leakage.

Choose by exact electrical documentation rather than assuming the 10A is merely the 8A with two extra amps. Their connection instructions, chemistry wording, and internal behavior may differ by revision. An SAE plug and similar casing do not establish interchangeability.
