Renogy Rover Lite 60A Review: Serious Capacity Demands Serious Terminations

The Renogy Rover Lite 60A is built for arrays and battery banks beyond the usual weekend-camping controller. It combines 60A charge output, a 150V PV ceiling, support for 12V through 48V batteries, an LCD, user-defined profiles, RS485 communications, and a published three-year warranty.

Its physical and electrical scale are both advantages and obligations. The controller weighs 3.5kg, requires protected IP32 mounting, and can move enough current for a poor battery termination to become dangerous. One captured owner reported stripped clamping hardware and melted plastic on two units. Most other owners described solid construction and successful operation, but that failure account makes cable preparation and inspection central to this review.

Evidence basis — Solar Power Picks did not install or load-test this controller. The analysis uses the exact-model evidence record and eight captured Amazon reviews. Specific charging times, environments, and failures belong to those owners and are not independent tests.

A Four-Voltage Controller, but Not One Universal Array

Renogy publishes 60A maximum charge output and 150V maximum PV open-circuit voltage. Nominal PV allowance changes with the bank: 900W at 12V, 1,800W at 24V, 2,000W at 36V, and 3,200W at 48V. Non-lithium system voltage is described as automatic; lithium configuration still requires deliberate profile and voltage checks.

The 36V row is notably close to the 24V allowance rather than halfway toward the 48V value. Use the exact current manual instead of extrapolating watts from amperage. The reviewed evidence did not publish maximum array Isc, so a parallel-string plan still needs confirmation from Renogy.

Cold-corrected string Voc must stay below 150V with the manufacturer’s required margin. A panel string at 135V on a warm day can rise materially in freezing weather. Parallel strings add short-circuit current even when voltage stays the same. The 60A nameplate is battery-side output, not permission for 60A PV Isc.

Array rule — Pass four independent checks: winter Voc, total array Isc, voltage-specific PV watts, and battery-side charge current. Passing three does not compensate for failing the fourth.

Expansion Headroom Is Useful Only When Planned

Several owners bought the 60A model specifically for growth. One used a roughly 450W panel and valued having room to add more. A boat owner chose more current than initially required. Another enthusiastic review argued for intentionally buying larger hardware as the solar system grows.

Oversizing the controller can reduce the cost of a later replacement, but it cannot make every future array compatible. A 150V ceiling still limits series length; input current and power tables constrain parallel growth; and a 12V bank may demand much heavier copper at 60A than a move to 24V or 48V.

The most responsible expansion strategy is a written future-state design. Buying the largest number available without that design can leave the real bottleneck in conductors, battery current, roof area, or the PV-current rule.

The Terminal Failure Report Cannot Be Buried

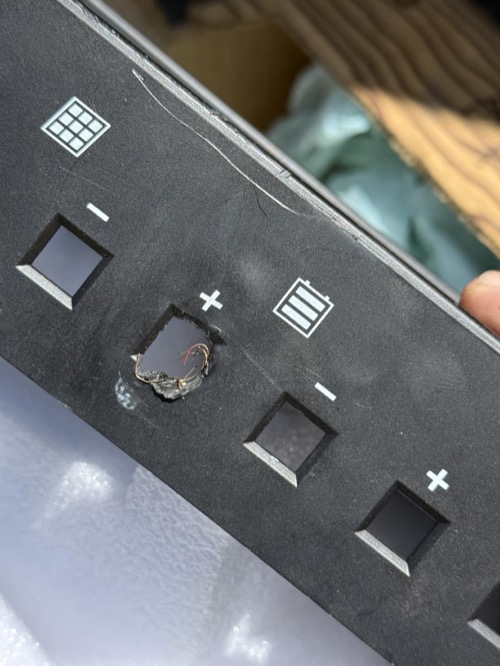

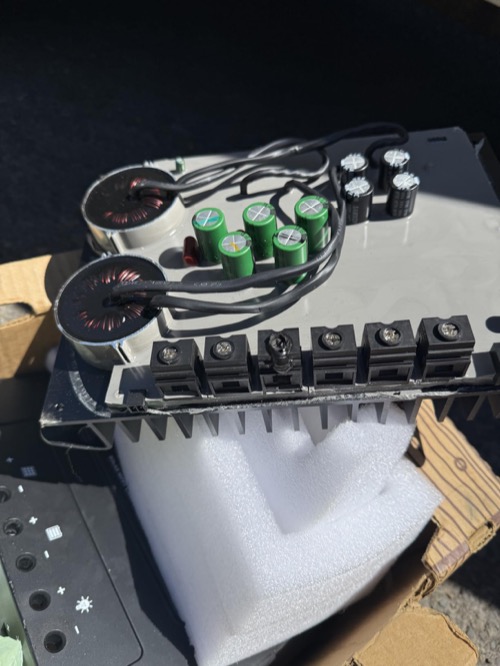

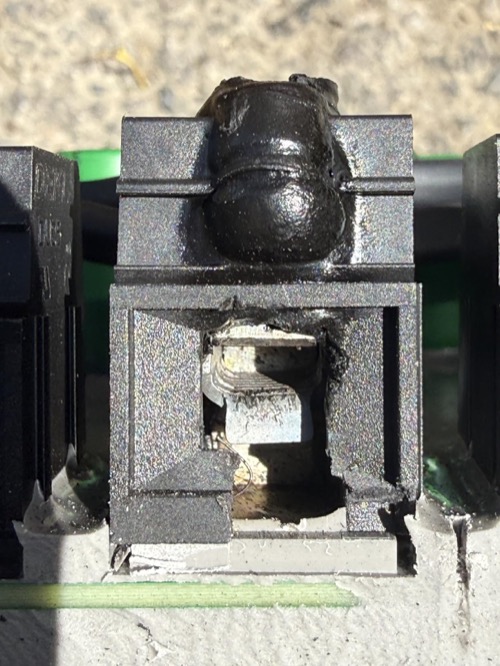

One one-star owner described two controllers with failed cable-clamping mechanisms. In the first, the positive battery termination reportedly would not tighten, creating heat that melted the plastic case. The replacement allegedly developed a similar problem at the negative solar terminal. Customer photos were captured in the evidence package.

This is one person’s two-unit account, not proof that every Rover Lite shares a defect. It is serious because a loose high-current connection can create resistance heating and fire risk. The response is not to downgrade all other evidence; it is to make termination inspection mandatory.

Before energizing, verify that the full conductor fits without strand removal, the clamping part moves normally, and the connection reaches the manual-specified torque. Pull-test each conductor after tightening. During initial full-sun operation, inspect for unexpected temperature rise, odor, discoloration, or voltage drop using safe methods.

Immediate stop condition — A terminal that spins, strips, fails to clamp, heats, discolors, or damages insulation is not serviceable. De-energize safely and replace the affected hardware; do not rely on retightening a compromised high-current connection.

The Other Owner Reports Are Mostly Positive—but Varied

One travel-trailer owner described a straightforward installation with 4 AWG welding cable, an initial configuration issue, and a later correction from gel to flooded mode after a battery disconnect reset the controller. The owner also reported an E04 load error and light flicker under a particular converter arrangement.

That report appears to describe a physical load circuit rated at 20A, while the normalized exact-model material reviewed for this article does not document dedicated load terminals. Renogy families and marketplace revisions can differ. Buyers must inspect the exact terminal layout and manual rather than transferring one review’s wiring to another unit.

Other owners reported roughly a year of operation on a 450W panel, six reliable Renogy controllers across systems, and successful Bluetooth-module integration. A boat owner praised the heavy metal build and self-cooling but incorrectly inferred that the temperature sensor protects lithium from overheating; Renogy documents the remote sensor for lead-acid compensation, not as a controller-managed lithium cold cutoff.

Battery Profiles and Temperature Sensing

The controller supports sealed/AGM, gel, flooded, lithium, and user-defined profiles. A remote temperature sensor is intended for lead-acid temperature compensation. No controller-managed lithium low-temperature cutoff was published in the reviewed evidence.

For LiFePO4, select values from the exact battery manual: maximum voltage, permitted current, float policy, reactivation behavior, and charging temperature. If the battery can freeze, identify the BMS or external control that actually blocks charging. For lead-acid, mount the sensor correctly and confirm the adjusted charging voltage.

One owner found the controller set to gel after a reset and changed it back to flooded. Whether that was default behavior or installation-specific, it supports a simple practice: record the complete parameter set and recheck it after firmware changes, resets, battery disconnects, or major rewiring.

Screen First, Bluetooth Optional

The large LCD and buttons allow normal use without a phone. That was an explicit reason one owner chose the controller. RS485 provides a path to the optional Renogy Bluetooth module and DC Home app; another reviewer liked seeing energy from multiple Renogy chargers in one interface.

The accessory distinction affects value. If local readings are enough, the Rover Lite avoids an app dependency. If logging or remote cabinet access is required, include the correct module in the budget and verify exact port compatibility. Bluetooth remains local communication, not automatic internet monitoring.

IP32 and 3.5kg Shape the Installation

At 305 × 205 × 99 mm and about 3.5kg, the 60A unit needs a solid mounting surface and cable support. One travel-trailer reviewer specifically warned that it was roughly twice the size of an earlier controller and heavy for vertical mounting.

IP32 means protected indoor installation. A cabin equipment room, ventilated RV compartment, or dry boat electrical space can fit; direct spray, rain, condensation, and corrosive battery vapor do not. Renogy publishes -35°C to 65°C operation, but output and lifespan still depend on ventilation and thermal conditions.

High-Current Commissioning Checklist

• Confirm exact model, revision, seller, and warranty registration path.
• Calculate cold-corrected PV Voc and obtain the missing input-current rule.
• Use the correct PV-power row for the bank voltage.
• Verify battery/BMS charge-current and temperature limits.
• Size conductors, fuses, breakers, and disconnects for fault and operating current.
• Inspect clamping hardware before inserting cable; use full conductor cross-section.
• Torque and pull-test every high-current connection.
• Support heavy cables so vibration does not load the terminals.
• Save battery parameters and recheck them after reset or disconnection.
• Monitor connection temperature during initial high-output operation.

Rover Lite 60A Versus AMPINVT and Premium Controllers

The AMPINVT 60A offers similar headline voltage/current capacity at a lower price and includes front history, but its captured evidence contains louder fan, display, warranty, and support concerns. Renogy supplies clearer dimensions, IP rating, three-year warranty, and a more established accessory ecosystem.

Victron’s higher-current 150V families emphasize complete PV-current documentation, built-in Bluetooth on SmartSolar variants, and a five-year warranty. They can cost more and may require choosing a model beyond the 35A unit commonly compared in this cluster.
